Audi is the only vehicle that may heat the circuit breaker in your house because of its fast charging ability or slow charging (for 40 hours).

The capacity of this car’s fast charging circuit is 50 amps or else only a trickle charge.

So, you can call it the sole cause of the recurring issue of “Why is Audi e-tron charger tripping breaker frequently?”.

The frustration accompanying an incident where an Audi e-tron charger trips off the breaker when you never even finished charging your vehicle is unbelievable.

Unlike most electric cars that charge slowly, the Audi e-tron requires a more significant power source to juice up the EV battery quickly.

Let’s go for the causes of these breaker trips, which is necessary for a smoother charging experience.

Before Proceeding, You May Check,

HOW DO YOU FIX THE CHEVY BOLT EV CHARGER TRIPPING BREAKER?

WHY DOES NISSAN LEAF CHARGER KEEP TRIPPING BREAKER?

HOW TO TROUBLESHOOT TESLA MODEL 3 CHARGER TRIPPING BREAKER ISSUES?

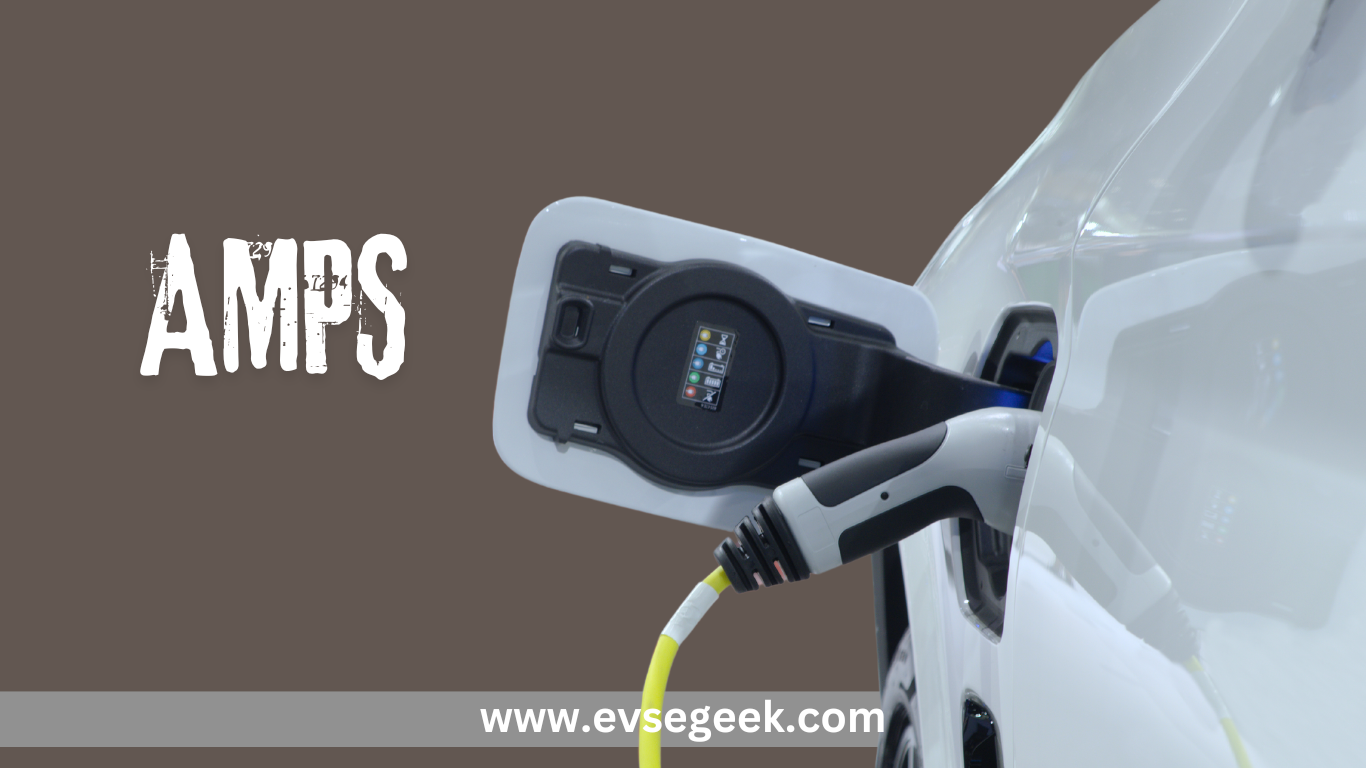

How many amps does an Audi Etron charger use?

The Audi e-tron charger operates at a demanding 50 amps. This means your home electrical system needs to be able to handle this load to avoid EV charger tripping breaker

The Audi e-tron onboard charger is designed to handle a maximum of 48 amps.

This translates to a 50-amp circuit being necessary for optimal charging performance.

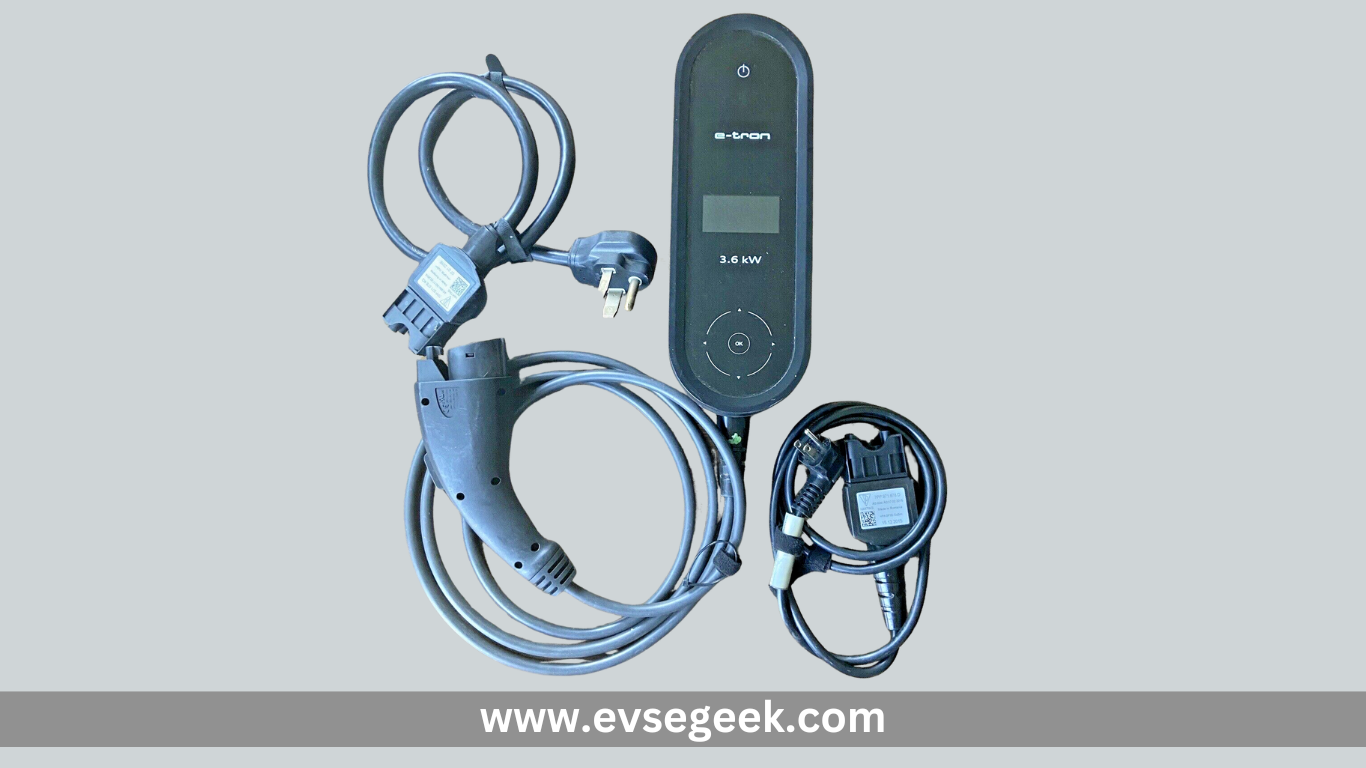

What level 2 charger does Audi recommend for hassle-free charging?

Any Level 2 EV charger (240V) can work with your e-tron.

However, Audi recommends a 40-amp charger or more for smooth operation.

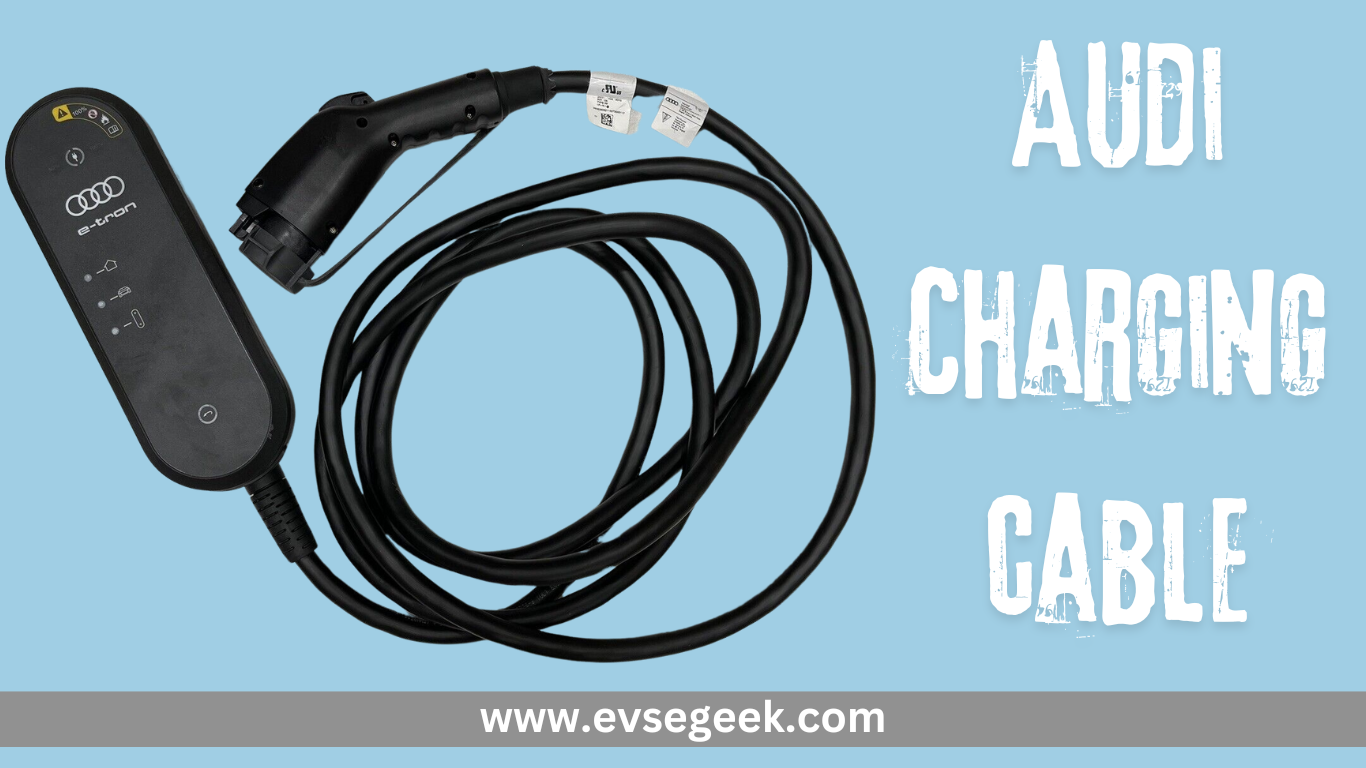

Can charging cable be an issue on the Audi e-tron trip breaker?

• Like any electric conductor, including charging cables, it has intrinsic resistance. This opposition lowers the efficiency of electricity transfer, causing a voltage drop.
• In the well-functioning cable, this resistance is minimal and does not affect the current flow.
• Conversely, cables with inside problems like worn insulation, loose joints, and corrosion may have higher resistance, leading to Audi e-tron charging problems.

How Increased Resistance Leads to Breaker Trips:

• Being cable-resistant, more energy will be converted into heat than the battery. This means that an effect associated with it is called “voltage drop.”

• To compensate for the voltage drop from the faulty cable, the e-tron’s onboard charger might attempt to draw more current to keep the target charging power.
• This power loss, caused by inefficiencies in the cable, could amount to more than your circuit can handle, causing the breaker to trip.

Signs of a Potentially Faulty Charging Cable:

• Evident damages include fraying, cracks, or melting on the cable’s insulation.
• Heat marks appear on the cable connector plugs.
• The smell was that the cable was burning while Audi e-tron home charging.

8 Potential Causes of Audi e-tron charger tripping breaker frequently

1. Circuit Overload: It is possible for your home circuit not to be designed for the high EV charger amperage for the Audi e-tron charging session. This is the most significant factor affecting EV charger tripping breakers.
2. Undersized Breaker: Make sure you install a 50-amp breaker to handle the load of the charger. A 40 amp breaker will not work, and it will just trip.
3. Missing Dedicated Circuit: If possible, the Audi e-tron charger should be on a dedicated circuit to prevent breaker trips from other household appliances and protect against circuit overload.
4. EVSE Malfunction and GFCI Issues: A damaged Audi EVSE may cause the GFCI breaker to trip down.

5. Charger Exceeding Amperage Draw: There are cases where the charger might not be functioning and hence drawing more than the stipulated 30 amps, and as a result, the breaker will be tripped.
6. Voltage Fluctuations: Voltage surges higher than 254 volts may interrupt the charging process and trigger the breaker.
7. Improper Grounding: To prevent unexpected ground faults that can cause the GFCI breaker to trip, the electrical circuit and the charger must have proper grounding.
8. Insufficient Cooling: In hot climates, for instance, during the summer, poor ventilation in the space around the charger can cause overheating and even a frequent tripping of circuit breaker.

My Audi E Tron Cause Breaker Tripping after 50% Charge-Cause

The e-tron battery charging means a lesser current is needed to maintain the same charging speed. Initially, when the battery is discharged, the rate of current draw is maximum.

But when the battery is about 50% charged, it is more “charged” and requires less current to fill its remaining capacity.

This is because lithium-ion batteries do not charge linearly.

The problem lies in your circuit’s capacity!

Even after the current has fallen to 50%, it may still exceed the existing circuit’s limit, especially if its size is incompatible with the e-tron’s 48-amp maximum draw.

40-amp NEMA 14-50 plug Is tripping the Audi circuit breaker-Quick Solution

1. Use an Audi charge kit at 50% energy. Overnight charge – perfectly functional.
2. Upgrade Your Circuit: It is advisable to engage a licensed electrician to provide a dedicated 50-amp circuit with appropriate wiring (usually 6-gauge copper) to ensure perfection. This also means that e-tron charging is secure and convenient for you.
3. Perhaps a trial with a non-GFI breaker can solve the problem.
4. Set up the charger with a maximum output of 24 amps. This will prevent the breaker from tripping but will take longer to charge the vehicle.
5. To be sure, the cable should have a 50-ms rating—typically 6-gauge copper. Change the circuit breaker to a 50-amp breaker and set the charger for no more than 40 amps output. This will make the vehicle charge faster and safer.
6. Consult the Manual: For the most part, EV chargers, even the Audi charger, have variable amperage settings using dip switches. Check out the manual (download it if not available) for directions on how to set the amperage. Make sure to switch off the power to fix Audi e-tron charging problems.
7. Replace Breaker and Adjust Charger Output: The installation will comprise a new breaker with an amp capacity of 50 amps and a charger configured to a maximum output of 40 amps to balance charging speed and safety.

FAQs:

1. What happens if I ignore breaker trips while charging my e-tron?

Overlooking the repeated breaker trips can have dire consequences. The chronic overcurrent may cause damage to your wires and sometimes result in electrical fire. The current can also damage the onboard charging system or even the battery.

2. My Audi charging kit keeps tripping the breaker. Is it faulty?

It is rare, but it may happen at any time. Although the Audi kit is supposed to facilitate the charging of e-tron, a malfunction may still occur. If possible, switch to a different Audi charger (if possible) to isolate the source of the problem.

3. Are there any temporary solutions to avoid breaker trips while I wait for a circuit upgrade?

As an immediate solution, reducing the charging amperage on your charger (if applicable) is worth it. This will delay charging times but avoid breaker trips until the permanent solution is accomplished.

Important Note: Never overload a circuit or use an extension cord to charge an EV, as this is a fire hazard.

4. Does Audi charging in cold weather affect breaker trips?

Batteries can be slightly less efficient in freezing weather, requiring a short-term boost of the current draw during charging.

This might, on rare occasions, trigger the breakers on borderline circuits. Nevertheless, it shouldn’t be a repeat problem in most climates.

5. Where can I find troubleshooting tips for Audi e-tron charging issues?

Your Audi e-tron owner’s manual, specifically tailored to your model, contains comprehensive guidelines for charging and possible troubleshooting procedures.

Audi might have a dedicated part of its official website for charging and troubleshooting EV FAQs.

EV forums and online communities can help Audi e-tron charging troubleshooting and establish bonds with other e-tron drivers and help you solve frequent charging problems.
