How to Charge BMW X5 Hybrid at Home

Learn how to charge BMW x5 hybrid at home. Find expert tips on optimizing your BMW X5’s range through efficient charging practices. how to do charging of my BMW x5 hybrid at home.

Does the cable of the BMW come with literally plug into any standard USA home outlet (110v)?

If you want to use Level 2 charging, can you buy a charging cable that fits the NEMA 14-30 that is compatible with the X5?

And what if you want to use your Tesla cable with a NEMA 14-30 adapter-do you just get an adapter to convert the plug to be BMW-compatible?

With so many choices, it’s easy to feel overwhelmed.

You’ve likely read that it can take 15+ hours for a full charge with a 110v outlet and 5-7 hours with a 240v outlet.

But which is the best option for your needs?

Should you stick with the 110v provided cable, buy a new separate cable that fits the NEMA 14-30 outlet to charge your BMW, or buy the adapter that converts the Tesla plug to BMW-compatible?

How to Choose and Install a Level 2 EV Charger for Home?

In this guide, we’ll address these common concerns and help you understand how to charge your BMW X5 hybrid at home efficiently and safely.

Understanding Your BMW X5 Hybrid’s Charging Capabilities

BMW’s X5 hybrid lineup offers two distinct plug-in hybrid models, each with unique charging characteristics and capabilities. Understanding these differences is crucial for selecting the right home charging solution and optimizing your daily driving experience.

BMW X5 xDrive40e vs xDrive45e: Key Charging Specifications

BMW X5 xDrive40e Specifications:

• Battery Capacity: 12 kWh lithium-ion battery pack
• Electric Range: Up to 30 miles on electric power alone
• Charging Port: Type 1 (J1772) connector standard in North America
• Maximum AC Charging Speed: 3.7 kW (16 amps)
• Onboard Charger: Single-phase 3.7 kW capacity

BMW X5 xDrive45e Specifications:

• Battery Capacity: 24 kWh high-voltage lithium-ion battery
• Electric Range: Up to 50 miles of electric-only driving
• Charging Port: Type 1 (J1772) connector with enhanced cooling
• Maximum AC Charging Speed: 7.4 kW (32 amps)
• Onboard Charger: Single-phase 7.4 kW capacity

Charging Port Location and Cable Overview

Both BMW X5 hybrid models feature the charging port located on the left rear side of the vehicle, behind a protective flap. The charging port accepts the standard J1772 connector used throughout North America.

BMW Included Charging Equipment:

• Occasional Use Cable (OUC): 120V Level 1 charging cable
• Cable Length: 20 feet for flexible positioning
• Built-in Safety Features: GFCI protection and temperature monitoring
• LED Status Indicators: Green (ready), Blue (charging), Red (fault)

Important Charging Indicator Lights:

• Solid Green: Ready to charge, proper connection established
• Flashing Blue: Active charging in progress
• Solid Blue: Charging complete, vehicle fully charged
• Red/Orange: Charging fault detected, check connections
• No Light: Power not available or connection issue

Home Charging Options for BMW X5 Hybrid: Complete Comparison

Choosing the right home charging method depends on your daily driving needs, available electrical infrastructure, and budget considerations. Here’s a detailed breakdown of your three primary options.

Level 1 Charging: Standard 120V Household Outlet

Level 1 charging uses your existing household electrical outlets and the BMW-provided Occasional Use Cable. While convenient and requiring no additional equipment purchase, it’s the slowest charging method available.

Equipment Requirements:

• BMW Occasional Use Cable (included with vehicle)
• Standard 120V household outlet (NEMA 5-15)
• Dedicated 15-amp circuit (recommended for safety)

Charging Performance:

• BMW X5 xDrive40e: 2-3 miles of range per hour
• BMW X5 xDrive45e: 2-4 miles of range per hour
• Full Charge Time (xDrive40e): 12-14 hours
• Full Charge Time (xDrive45e): 14-18 hours

Cost Analysis:

• Equipment Cost: $0 (included with vehicle)
• Installation Cost: $0 (uses existing outlet)
• Electricity Cost: $1.50-$3.50 per full charge

✅ Pros:

• No upfront investment required
• Uses existing home electrical infrastructure
• Perfect for emergency charging situations
• Portable solution for travel

❌ Cons:

• Extremely slow charging speeds
• May not fully charge overnight for daily commuters
• Occupies standard outlet for extended periods
• Not practical for high-mileage drivers

Level 2 Charging: 240V Home Charging Station (Recommended)

Level 2 charging represents the optimal balance between charging speed, cost, and convenience for most BMW X5 hybrid owners. This method uses 240V power and significantly reduces charging times.

Equipment Requirements:

• Dedicated Level 2 charging station (EVSE)
• 240V electrical circuit (typically 30-40 amp)
• Professional electrical installation
• NEMA 14-30 or NEMA 14-50 outlet (or hardwired connection)

Charging Performance:

• BMW X5 xDrive40e: 10-15 miles of range per hour
• BMW X5 xDrive45e: 15-25 miles of range per hour
• Full Charge Time (xDrive40e): 2.5-4 hours
• Full Charge Time (xDrive45e): 3.5-5 hours

Cost Analysis:

• Equipment Cost: $300-$800 for charging station
• Installation Cost: $500-$1,500 (depending on electrical work needed)
• Electricity Cost: $2.50-$6.00 per full charge

✅ Pros:

• Fast, convenient overnight charging
• Future-proof for other EVs
• Smart features available (scheduling, monitoring)
• Increases home value
• Weather-resistant options available

❌ Cons:

• Higher upfront investment
• Requires professional installation
• May need electrical panel upgrade

Smart vs Standard Level 2 Chargers: Advanced Features

Modern Level 2 charging stations offer sophisticated features that enhance convenience and optimize energy usage.

Smart Charging Station Features:

• WiFi Connectivity: Remote monitoring and control via smartphone apps
• Load Balancing: Automatically adjusts power based on home electrical demand
• Time-of-Use Scheduling: Charges during off-peak electricity rates
• Energy Monitoring: Tracks charging costs and usage patterns
• BMW Integration: Compatible with BMW Connected app for seamless control

Recommended Smart Chargers for BMW X5:

• ChargePoint Home Flex: 16-50 amp adjustable, WiFi enabled
• JuiceBox 40: Smart scheduling and energy monitoring
• Grizzl-E Smart: Canadian-built, extreme weather rated
• Wallbox Pulsar Plus: Compact design with advanced scheduling

Step-by-Step BMW X5 Hybrid Charging Instructions

Proper charging technique ensures safety, maximizes battery life, and prevents common connection issues. Follow these detailed steps for both Level 1 and Level 2 charging scenarios.

Pre-Charging Safety Checklist

Before beginning any charging session, complete this essential safety verification:

Vehicle Preparation:

• Park on level ground with charging port accessible
• Ensure 6-foot clearance around charging cable area
• Verify charging port flap opens and closes smoothly
• Check for any visible damage to charging port or vehicle

Environmental Safety Check:

• Confirm dry conditions (avoid charging during heavy rain)
• Remove any debris from charging port area
• Ensure adequate lighting for safe cable handling
• Verify stable electrical power (no flickering lights)

Detailed Charging Process: Level 1 and Level 2

Step 1: Unlock the Charging Port

Method 1 – Key Fob:

• Press and hold the “unlock” button on BMW key fob for 3 seconds
• Listen for audible click indicating port flap release
• Manually lift charging port flap to access connector

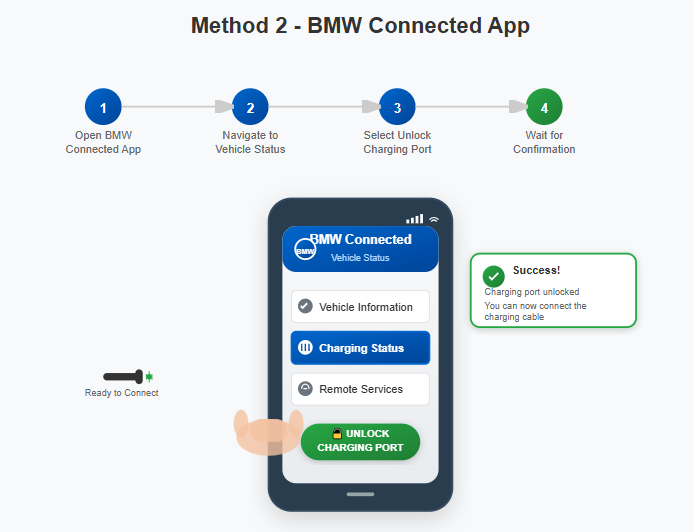

Method 2 – BMW Connected App:

• Open BMW Connected app on smartphone
• Navigate to “Vehicle Status” section
• Select “Unlock Charging Port” option
• Wait for confirmation notification

Method 3 – Interior Button:

• Locate charging port release button near driver’s left knee
• Press button while vehicle is unlocked
• Exit vehicle and manually open charging port flap

Step 2: Prepare and Connect Charging Cable

For Level 1 Charging (120V):

1. Remove BMW Occasional Use Cable from vehicle storage area
2. Inspect cable for damage, cracks, or exposed wiring
3. Connect power end to dedicated 120V outlet first
4. Wait for green LED indicator on charging module
5. Carefully insert J1772 connector into vehicle charging port
6. Push firmly until connector clicks and locks in place
7. Verify blue LED begins flashing (charging active)

For Level 2 Charging (240V):

1. Ensure Level 2 charging station is properly installed and powered
2. Remove charging cable from station holster or storage
3. Inspect connector for cleanliness and damage
4. Insert J1772 connector into BMW charging port
5. Push until secure connection is established
6. Initiate charging through station interface or app
7. Confirm charging status through vehicle display or BMW app

Step 3: Monitor Charging Progress and Status

Dashboard Monitoring:

• Check charging status on vehicle’s main display screen
• Monitor estimated completion time and current charge level
• Verify charging rate matches expected performance
• Note any error messages or warnings displayed

BMW Connected App Monitoring:

• Real-time charging status and battery percentage
• Estimated completion time based on current rate
• Charging session cost tracking (with smart chargers)
• Remote notifications for charging completion or issues

Physical Indicator Monitoring:

• Flashing Blue LED: Normal charging in progress
• Solid Blue LED: Charging complete, ready for disconnection
• Red/Orange LED: Charging fault, requires troubleshooting
• No LED: Connection issue or power interruption

Completing the Charging Session Safely

Step 4: Proper Disconnection Procedure

1. Stop Charging Session:

   • Press stop button on charging station (if applicable)
   • Use BMW Connected app to end session remotely
   • Wait for charging to fully stop (LED indicators off)
2. Disconnect from Vehicle:

   • Unlock vehicle using key fob or app
   • Press release button on J1772 connector
   • Pull connector straight out (avoid twisting motion)
   • Close charging port flap securely
3. Secure Charging Equipment:

   • Return cable to charging station holster
   • For portable chargers, store in designated vehicle location
   • Ensure cables are not left on ground or in walkways

Troubleshooting Common Charging Issues

Understanding and resolving common charging problems ensures reliable home charging and prevents costly service calls.

Charging Port Won’t Unlock:

• Cause: Frozen lock mechanism or electrical fault
• Solution: Try alternate unlock methods (app, interior button)
• Prevention: Regular port operation during winter months

Connection Error Messages:

• Cause: Dirty charging port contacts or connector wear
• Solution: Clean contacts with dry cloth, inspect for damage
• Prevention: Monthly visual inspection and cleaning

Slow Charging Speeds:

• Cause: High electrical demand or voltage drop
• Solution: Avoid using high-power appliances during charging
• Prevention: Dedicated circuit installation for Level 2 charging

Weather-Related Charging Problems:

• Cause: Extreme temperatures affecting battery or electronics
• Solution: Pre-condition vehicle while plugged in
• Prevention: Use heated garage or covered charging area

Top Level 2 Charging Station Recommendations

BMW TurboCord 240V (Portable Level 2)

• Power Output: 20 amps, 4.8 kW maximum
• Connector Type: NEMA 14-30 plug, portable design
• Key Features: Compact, travel-friendly, BMW-tested compatibility
• Price Range: $400-$500
• Best For: Renters or frequent travelers

ChargePoint Home Flex

• Power Output: Adjustable 16-50 amps, up to 12 kW
• Installation: Plug-in or hardwired options available
• Smart Features: WiFi connectivity, scheduling, energy tracking
• Price Range: $600-$750
• Best For: Tech-savvy users wanting advanced features

JuiceBox 32 and JuiceBox 40

• Power Output: 32A (7.7 kW) or 40A (9.6 kW) options
• Smart Features: WiFi, load balancing, time-of-use optimization
• Easily reset option in case of malfunction
• Installation: Hardwired installation required
• Price Range: $500-$650
• Best For: Future-proofing for faster EVs

Grizzl-E Classic and Smart

• Power Output: 32A (7.7 kW) or 40A (9.6 kW) configurations
• Durability: Extreme weather rating, Canadian-engineered
• Installation: Both plug-in and hardwired models available
• Price Range: $400-$600
• Best For: Harsh climate conditions

Bmw X5 Charging Cost and Savings Calculator

Understanding the true cost of home charging your BMW X5 hybrid involves multiple factors including electricity rates, charging efficiency, installation costs, and available incentives. This analysis provides real-world numbers to help you make informed decisions.

Regional Electricity Costs and Rate Structures

Electricity costs vary significantly across the United States, directly impacting your BMW X5 hybrid charging expenses.

National Average Electricity Rates (2025):

• Residential Average: $0.139 per kWh
• Commercial Average: $0.108 per kWh
• Industrial Average: $0.074 per kWh

State-by-State Charging Cost Analysis (Top BMW Markets):

California:

• Average Rate: $0.217 per kWh
• xDrive40e Full Charge: $3.25
• xDrive45e Full Charge: $6.50
• Monthly Cost (30 charges): $97.50-$195.00

New York:

• Average Rate: $0.186 per kWh
• xDrive40e Full Charge: $2.79
• xDrive45e Full Charge: $5.58
• Monthly Cost (30 charges): $83.70-$167.40

Texas:

• Average Rate: $0.128 per kWh
• xDrive40e Full Charge: $1.92
• xDrive45e Full Charge: $3.84
• Monthly Cost (30 charges): $57.60-$115.20

Florida:

• Average Rate: $0.134 per kWh
• xDrive40e Full Charge: $2.01
• xDrive45e Full Charge: $4.02
• Monthly Cost (30 charges): $60.30-$120.60

Illinois:

• Average Rate: $0.143 per kWh
• xDrive40e Full Charge: $2.15
• xDrive45e Full Charge: $4.30
• Monthly Cost (30 charges): $64.50-$129.00

Time-of-Use Rate Optimization

Many utility companies offer time-of-use (TOU) electricity rates that can significantly reduce your BMW X5 hybrid charging costs.

Typical TOU Rate Structure:

• Peak Hours (4 PM – 9 PM): $0.35-$0.45 per kWh
• Off-Peak Hours (11 PM – 6 AM): $0.12-$0.18 per kWh
• Mid-Peak Hours (Other times): $0.20-$0.28 per kWh

Optimal Charging Schedule:

• Best Time: 11 PM – 6 AM (off-peak rates)
• Potential Savings: 40-60% reduction in charging costs
• Smart Charger Integration: Automatic scheduling based on TOU rates

Detailed Charging Cost Calculator

BMW X5 xDrive40e Charging Costs:

• Battery Capacity: 15 kWh (including charging losses)
• Cost per Full Charge: $1.50-$3.25 (depending on local rates)
• Cost per Mile: $0.05-$0.11 (30-mile electric range)
• Annual Charging Cost: $400-$850 (12,000 miles, 40% electric driving)

BMW X5 xDrive45e Charging Costs:

• Battery Capacity: 27 kWh (including charging losses)
• Cost per Full Charge: $2.70-$6.50 (depending on local rates)
• Cost per Mile: $0.05-$0.13 (50-mile electric range)
• Annual Charging Cost: $350-$780 (12,000 miles, 60% electric driving)

Gasoline vs Electric Cost Comparison

Gasoline Cost Analysis (National Average: $3.25/gallon):

• BMW X5 xDrive40e: Combined 50 MPG in hybrid mode
• BMW X5 xDrive45e: Combined 56 MPG in hybrid mode
• Annual Gasoline Cost: $650-$780 (12,000 miles)

Electric-Only Driving Savings:

• xDrive40e: Save $0.02-$0.06 per mile vs gasoline
• xDrive45e: Save $0.03-$0.08 per mile vs gasoline
• Annual Savings Potential: $240-$960 depending on electric driving percentage

Level 2 Installation Return on Investment

Total Installation Investment:

• Charging Station: $400-$800
• Electrical Installation: $500-$1,500
• Permits and Inspection: $100-$300
• Total Investment: $1,000-$2,600

Payback Period Analysis:

• Daily Charging Savings: $2-$8 vs Level 1 charging inconvenience value
• Convenience Value: Faster charging, reliable overnight completion
• Home Value Increase: $1,000-$2,000 estimated property value boost
• Effective Payback Period: 6-18 months including convenience factors

Available Incentives and Rebates Program

Federal Tax Credits:

• Residential EV Charger Credit: 30% of installation costs up to $1,000
• Eligibility: Primary residence installation only
• Requirements: Professional installation with permits required
• Expiration: December 31, 2032 under current legislation

State-Level Incentive Programs:

California:

• CARB Clean Vehicle Rebate: Up to $1,000 for charging equipment
• Utility Rebates: $500-$1,500 from major utilities (PG&E, SCE, SDG&E)
• LADWP: 50% rebate up to $500 for residential installations

New York:

• NYSERDA: Up to $4,000 rebate for residential Level 2 chargers
• Con Edison: $1,500 rebate for smart charging stations
• PSEG Long Island: $500 rebate plus reduced electricity rates

Texas:

• Oncor: $1,500 rebate for qualifying Level 2 installations
• CenterPoint Energy: $600 rebate for smart charging stations
• Austin Energy: $1,200 rebate for residential customers

Utility Company Time-of-Use Programs:

• Special EV Rates: 20-50% lower electricity costs during off-peak hours
• Demand Response Programs: Additional credits for flexible charging
• Net Metering: Credits for solar panel integration with EV charging

Maximizing Your BMW X5 Hybrid’s Efficiency and Battery Life

Optimizing your BMW X5 hybrid’s charging practices and driving efficiency extends battery life, maximizes electric driving range, and reduces long-term ownership costs.

Advanced BMW Charging Strategies for Battery Health

Proper charging habits significantly impact your BMW X5 hybrid’s lithium-ion battery longevity and performance retention over time.

Optimal State of Charge Management:

Modern lithium-ion batteries perform best when maintained within specific charge level ranges.

Daily Charging Best Practices:

• Ideal Daily Range: Maintain battery between 20-80% charge
• Weekly Full Charge: Complete 100% charge once per week to calibrate system
• Avoid Deep Discharge: Never let battery drop below 10% regularly
• Temperature Awareness: Avoid charging in extreme temperatures when possible

80% vs 100% Charging Strategy:

• Daily Commuting: Charge to 80% for routine use
• Long Trip Preparation: Charge to 100% only before extended drives
• Battery Chemistry Benefits: Reduced stress on lithium-ion cell structure
• Lifespan Extension: Up to 25% longer battery life with proper management

Temperature Considerations for Optimal Charging:

Battery performance and charging efficiency vary significantly with ambient temperature conditions.

Cold Weather Charging (Below 32°F):

• Reduced Charging Speed: Up to 50% slower in extreme cold
• Battery Preconditioning: Use BMW Connected app to warm battery before charging
• Garage Parking Benefits: Maintains optimal temperature for efficient charging
• Range Impact: Cold weather reduces electric range by 20-40%

Hot Weather Charging (Above 85°F):

• Thermal Management: BMW’s active cooling system maintains optimal battery temperature
• Charging Speed Reduction: Automatic reduction to prevent overheating
• Shade Parking: Reduces thermal stress on battery and charging system
• Peak Hour Avoidance: Charge during cooler evening or early morning hours

Smart Charging Scheduling and BMW Connected Services

BMW’s Connected Services platform integrates seamlessly with your home charging setup to optimize energy usage and costs.

BMW Connected App Charging Features:

Remote Climate Control While Plugged In:

• Cabin Preconditioning: Heat or cool interior while charging
• Energy Source: Uses grid power instead of battery for climate control
• Departure Timer: Automatically precondition based on scheduled departure
• Battery Range Preservation: Maintains full electric range for driving

Intelligent Charging Scheduling:

• Time-of-Use Integration: Automatically charges during lowest cost periods
• Departure Time Optimization: Ensures full charge by planned departure time
• Load Balancing: Coordinates with smart home systems to avoid peak demand
• Grid Integration: Participates in utility demand response programs when available

Real-Time Energy Monitoring:

• Charging Session Tracking: Monitor current session progress and costs
• Historical Analysis: Review monthly and annual charging patterns
• Efficiency Reporting: Track electric vs gasoline usage ratios
• Cost Comparison: Compare charging costs with gasoline expenses

Home Energy System Integration

Solar Panel Compatibility and Benefits:

Integrating solar panels with your BMW X5 hybrid charging creates a truly sustainable transportation solution.

Solar-Powered EV Charging Benefits:

• Energy Independence: Reduce reliance on grid electricity
• Cost Savings: Generate free electricity for vehicle charging
• Environmental Impact: Zero-emission transportation and energy generation
• Property Value: Increase home value with renewable energy systems

Solar System Sizing for EV Charging:

• xDrive40e Requirements: Additional 3-4 kW solar capacity
• xDrive45e Requirements: Additional 5-6 kW solar capacity
• Battery Storage Integration: Tesla Powerwall or similar for time-shifting solar energy
• Net Metering Benefits: Sell excess solar production back to utility

Smart Home Integration Opportunities:

• Home Energy Management: Coordinate EV charging with other electrical loads
• Peak Demand Reduction: Automatically reduce charging during high usage periods
• Renewable Energy Prioritization: Use solar power first, grid power as backup
• Emergency Backup: Some future BMW models may offer vehicle-to-home power capability.

Can I use any Level 2 charger with my BMW X5 hybrid?

Your BMW X5 hybrid uses the standard J1772 connector, making it compatible with virtually all Level 2 charging stations in North America. This universal compatibility gives you flexibility in choosing the best home charging solution for your specific needs and budget.

Universal J1772 Compatibility:

• Standard Connector: All BMW X5 hybrids use the J1772 charging standard
• Third-Party Chargers: Compatible with ChargePoint, JuiceBox, Grizzl-E, and other major brands
• Public Charging: Works with most public Level 2 charging networks
• Future-Proof: J1772 standard ensures long-term compatibility

Recommended Power Ratings:

• BMW X5 xDrive40e: Any Level 2 charger rated 16 amps or higher
• BMW X5 xDrive45e: Level 2 chargers rated 32 amps for optimal charging speed
• Installation Matching: Choose charger amperage that matches your electrical circuit capacity

Smart Charger Benefits:

• BMW Integration: Many smart chargers integrate with BMW Connected app
• Energy Management: Monitor usage and optimize charging schedules
• Cost Tracking: Track electricity costs and time-of-use savings
• Remote Control: Start, stop, and schedule charging from your smartphone

How often should I charge my BMW X5 hybrid?

Charging frequency depends on your daily driving patterns, but establishing a consistent routine maximizes battery health and ensures you’re always ready for electric-only driving when it’s most beneficial.

Daily Charging Recommendations:

• Short Commutes (Under 30 miles): Charge every 2-3 days or when battery reaches 20%
• Medium Commutes (30-50 miles): Daily charging recommended for maximum electric driving
• Long Commutes (Over 50 miles): Daily charging essential for optimal hybrid efficiency
• Weekend Drivers: Charge 1-2 times per week or before longer trips

Optimal Charging Patterns:

• Evening Charging: Plug in when you arrive home for overnight charging during off-peak hours
• Departure Timing: Use BMW Connected app to time charging completion with departure
• Weekly Deep Charge: Perform one 100% charge per week to calibrate battery management system
• Travel Preparation: Always start long trips with a full charge for maximum electric range

Battery Health Considerations:

• Avoid Deep Discharge: Don’t regularly let battery drop below 10%
• Temperature Awareness: Charge in moderate temperatures when possible
• Consistent Routine: Regular charging patterns help maintain battery calibration
• Monitor Degradation: Watch for changes in charging time or electric range over time

Will frequent charging damage my battery?

Modern lithium-ion batteries in BMW X5 hybrids are designed for frequent charging and actually prefer regular top-ups over deep discharge cycles. BMW’s advanced battery management system protects against overcharging and optimizes cell longevity.

Why Frequent Charging Is Better:

• Shallow Cycle Benefits: Charging from 40% to 80% creates less stress than 10% to 100%
• Heat Management: Frequent charging generates less heat than infrequent deep charging
• Cell Balancing: Regular charging helps maintain proper voltage balance across battery cells
• Optimal Chemistry: Lithium-ion batteries perform best with regular use and charging

BMW’s Battery Protection Systems:

• Overcharge Prevention: Automatic charging termination at full capacity
• Temperature Management: Active cooling and heating to maintain optimal operating temperature
• Cell Monitoring: Individual cell voltage monitoring prevents imbalanced charging
• Degradation Tracking: System monitors battery health and adjusts charging parameters accordingly

What Actually Damages EV Batteries:

• ❌ Extreme Temperatures: Prolonged exposure to very hot or cold conditions
• ❌ Deep Discharge: Regularly draining battery below 10%
• ❌ Fast DC Charging: Frequent use of high-speed public chargers (not applicable to home charging)
• ❌ Storage at 100%: Leaving battery at full charge for extended periods without use

✅ Best Practices for Battery Longevity:

• Daily Charging: Charge regularly rather than waiting for low battery
• Moderate Temperatures: Park in garage or shade when possible
• Regular Use: Drive regularly in electric mode to exercise the battery
• Proper Storage: Store vehicle at 50-60% charge for extended periods

Can I charge during a thunderstorm?

While BMW X5 hybrid charging systems include safety features, it’s recommended to avoid charging during active thunderstorms to prevent potential equipment damage from power surges and protect your personal safety.

Lightning and Electrical Safety:

• Power Surge Risk: Lightning can cause dangerous electrical surges through power lines
• GFCI Protection: Your charging equipment includes surge protection, but extreme events can overwhelm safety systems
• Insurance Considerations: Some policies may not cover lightning damage to charging equipment
• Personal Safety: Avoid handling electrical equipment during storms

Safe Charging Weather Conditions:

• ✅ Light Rain: Safe to charge with properly installed GFCI-protected equipment
• ✅ Snow: No additional risk if charging area is clear of standing water
• ✅ Wind: Safe unless debris could damage charging equipment
• ❌ Active Lightning: Wait until storm passes before connecting or disconnecting

Storm Preparation Tips:

• Pre-Storm Charging: Charge vehicle before severe weather arrives
• Surge Protection: Consider whole-house surge protector for additional equipment protection
• Equipment Inspection: Check charging equipment after severe weather events
• Emergency Planning: Keep vehicle charged for potential power outage transportation needs

Post-Storm Safety Checks:

• Visual Inspection: Check charging equipment for storm damage before use
• Power Quality: Verify stable electrical power before resuming charging
• Professional Assessment: Have electrician inspect if you suspect electrical damage
• Insurance Claims: Document any weather-related damage for insurance purposes

How much will my electric bill increase?

Your electricity bill increase depends on your driving patterns, local electricity rates, and charging efficiency, but most BMW X5 hybrid owners see modest increases of $20-$60 per month while saving significantly more on gasoline costs.

Typical Monthly Cost Increases:

BMW X5 xDrive40e:

• Low Usage (500 miles/month): $8-$18 increase
• Average Usage (1,000 miles/month): $15-$35 increase
• High Usage (1,500 miles/month): $25-$50 increase

BMW X5 xDrive45e:

• Low Usage (500 miles/month): $12-$25 increase
• Average Usage (1,000 miles/month): $20-$45 increase
• High Usage (1,500 miles/month): $35-$70 increase

Factors Affecting Your Bill:

• Local Electricity Rates: Vary from $0.10-$0.25 per kWh across the US
• Time-of-Use Programs: Off-peak charging can reduce costs by 40-60%
• Charging Efficiency: Level 2 charging is more efficient than Level 1
• Temperature Effects: Cold weather reduces efficiency and increases costs

Cost Comparison with Gasoline:

• Gasoline Equivalent Cost: $0.04-$0.12 per mile for electric driving
• Regular Gasoline Cost: $0.10-$0.15 per mile (at $3.25/gallon)
• Net Monthly Savings: $30-$120 depending on electric driving percentage
• Annual Savings Potential: $400-$1,500 for high-electric-usage drivers

Money-Saving Strategies:

• Off-Peak Charging: Use timer functions to charge during low-rate hours
• Solar Integration: Generate your own electricity for even greater savings
• Utility Rebates: Take advantage of EV-specific electricity rate programs
• Efficient Driving: Maximize electric range through eco-friendly driving habits

Can the BMW X5 Cable Plug into Any Home Outlet (110v)?

Yes, the charging cable that comes with your BMW X5 hybrid can be plugged into any standard USA home outlet (110v).

This is known as Level 1 charging, and while it is convenient and accessible, it is the slowest method.

BMW Level 2 Charging with a NEMA 14-30 Outlet

For faster charging, Level 2 charging is the preferred option. If you want to use a Level 2 charger, you can indeed buy a charging cable that fits the NEMA 14-30 outlet and is compatible with your BMW X5.

This significantly reduces charging time, providing a full charge in approximately 5-7 hours.

How to Charge BMW X5 Hybrid at Home: Using a Tesla Cable with a NEMA 14-30 Adapter

If you already have a Tesla cable with a NEMA 14-30 adapter, you might wonder if you can simply use an adapter to convert the plug to be BMW-compatible.

While this is technically possible, there are concerns about potential damage to the Tesla charger when using an adapter.

Therefore, it is generally safer to use equipment specifically designed for your BMW.

What Kind of Charger Does a BMW X5 45e Take?

The BMW X5 45e is compatible with both Level 1 and Level 2 chargers. Level 1 charging uses a standard 110v outlet and is the slowest option, taking over 15 hours for a full charge.

Level 2 charging, which uses a 240v outlet, is much faster and can fully charge your vehicle in 5-7 hours.

BMW provides a charging cable that can be used with a domestic socket, featuring LEDs to indicate the charging status.

Ensure that the socket you use has been checked by an electrician to guarantee safety.

How to Charge a BMW X5 Plug-in Hybrid

To charge your BMW X5 plug-in hybrid, follow these steps:

1. Check the Socket: Ensure that the socket you intend to use has been inspected by an electrician.
2. Position the Cable: Place the charging cable carefully on the ground or hang it using the loop to prevent any tripping hazards.
3. Connect to the Socket: Plug the charging cable into the domestic socket first.
4. Avoid Extension Cables: Do not use an extension cable between the charging cable and the socket.
5. Connect to the Vehicle: The green Power LED on the charging module indicates readiness. Connect the charging cable to your vehicle.
6. Monitor for Failures: In case of a charging failure, restart the process by reconnecting the cable or try a different socket.
7. Unplug Correctly: After charging, unlock your BMW to unplug the charging cable from the vehicle first, then from the socket.

Now, you have the answer of charging your BMW x5 hybrid at home.

Does BMW X5 Hybrid Charge Itself While Driving?

The BMW X5 hybrid does have regenerative braking, which allows the battery to recharge slightly while driving.

However, this does not replace the need for regular charging station.

Regenerative braking recaptures some energy during deceleration and braking, but it is not sufficient to fully recharge the battery.

BMW X5 xDrive45e (2020) Charging with Pod Point

1.Connect the Charger:

• Unwind the charging cable completely.
• Insert the Type 2 plug into the charging port of your BMW X5 xDrive45e. The plug should fit securely with a satisfying click.
• Secure the charging cable to prevent accidental disconnection. Some Pod Point chargers have a locking mechanism for added security.

2. Initiate the Charging Session:

• Pod Point Solo Charger:
  • Insert your RFID card into the card reader on the charger.
  • The charger should start charging automatically.
• Pod Point Smart Charger:
  • Unlock the charger using the Pod Point app or RFID card.
  • Press the “Start” button on the charger.

3. Monitor Charging Progress:

• You can monitor the charging progress on your BMW’s dashboard or through the Pod Point app (if you have one).
• The Pod Point charger will also display charging information, such as the charging rate and estimated time to full charge.

4. Complete the Charging Session:

• Once the battery is fully charged or you need to disconnect, stop the charging session.
  • Pod Point Solo Charger: Remove your RFID card.
  • Pod Point Smart Charger: Press the “Stop” button on the charger.
• Carefully remove the charging plug from your BMW.
• Rewind the charging cable into the Pod Point charger.

For those using a Pod Point charging station, the BMW X5 xDrive45e (2020) can be charged effectively at home or at public charging locations.

Pod Point offers both 7kW and 22kW charging solutions, aligning with the Level 2 charging options mentioned earlier.

This setup allows for a convenient and faster charging process, ensuring your vehicle is ready for use with minimal downtime.

Charger Type	Location	Charging Time	Charging Rate	Power
3-pin plug	Home	11 h	5 m/h	3.6kW
Level 2 (7kW)	Home/Work	7 h	8 m/h	7kW
Level 2 (22kW)	Home/Work/Public Locations	7 h	8 m/h	22kW
DC Fast Charger	Work/Public Locations	7 h	8 m/h	22kW

Where You Can Charge a BMW X5 xDrive45e

The BMW X5 xDrive45e is a plug-in hybrid, meaning it can be charged through an external power source. There are primarily two main locations where you can charge your vehicle:

1. Home Charging

• Tesla Wall Connector: While primarily associated with Tesla vehicles, many EV owners, including BMW drivers, find out if Tesla Wall Connector is a reliable and efficient charging solution or NOT. It offers faster charging speeds compared to standard home outlets.
• Dedicated EV Home Charger: There are various EV home chargers available in the market. These are specifically designed for electric vehicles and offer different power outputs.
• Standard Household Outlet: While not ideal due to slower charging speeds, you can use a standard 120V outlet as a backup option.

2. Public Charging Stations

• Pod Point: As you’ve mentioned, Pod Point is a popular charging network in many regions. They offer a variety of charging stations, from slower AC chargers to faster DC chargers.
• Other Charging Networks: Numerous charging networks exist, such as ChargePoint, EVgo, and Electrify America. These networks provide a combination of AC and DC charging stations.
• Destination Charging: Some hotels, restaurants, and shopping centers offer charging stations for electric vehicle customers.

Important Considerations:

• Charging Speed: Different charging stations offer varying charging speeds. DC fast chargers are the quickest, followed by AC chargers.
• Charger Compatibility: Ensure your BMW X5 xDrive45e is compatible with the charging station. Most public chargers in North America and Europe use the Type 1 or Type 2 connector.

FAQs

1. Can I use a standard household outlet to charge my BMW X5 hybrid?

While it’s possible to charge your BMW X5 hybrid using a standard 110V household outlet, it’s not recommended due to the extremely slow charging speed. For faster and more efficient charging, consider investing in a Level 2 home charger.

2. How long does it take to charge a BMW X5 hybrid at home?

The charging time for a BMW X5 hybrid depends on the charging method. Using a standard 110V outlet can take over 15 hours for a full charge. With a Level 2 charger, you can expect a full charge in approximately 5-7 hours.

3. What type of charging cable do I need for my BMW X5 hybrid?

Your BMW X5 hybrid should come with a charging cable that is compatible with standard 110V outlets. For faster Level 2 charging, you’ll need to purchase a separate charging cable that is compatible with your home’s electrical setup (usually a NEMA 14-30 outlet).

4. Can I use a Tesla charger to charge my BMW X5 hybrid?

While it’s technically possible to adapt a Tesla charger for use with a BMW X5 hybrid, it’s not recommended. Using an adapter can potentially damage the Tesla charger and void warranties. It’s best to use a charger specifically designed for your BMW.

5. How do I maximize the range of my BMW X5 hybrid?

To maximize the range of your BMW X5 hybrid, focus on efficient driving habits, such as avoiding aggressive acceleration and braking. Additionally, utilize regenerative braking to capture energy and charge the battery while driving. Regular charging, especially using a Level 2 charger, is also crucial for optimizing range.

Final Thoughts:

Charging your BMW X5 hybrid at home can seem complex due to the variety of charging options available. Understanding the differences between Level 1 and Level 2 charging, as well as the compatibility of your vehicle with different charging stations, is crucial. While using a standard 110v outlet is convenient, opting for a Level 2 charger significantly reduces charging time.

Remember, to learn about: how to charge BMW x5 hybrid at home, safety is paramount. Always ensure that any electrical work is performed by a qualified electrician. By carefully considering your charging needs and following the guidelines provided, you can efficiently and safely charge your BMW X5 hybrid.
